Filter Finder No: FF200081B

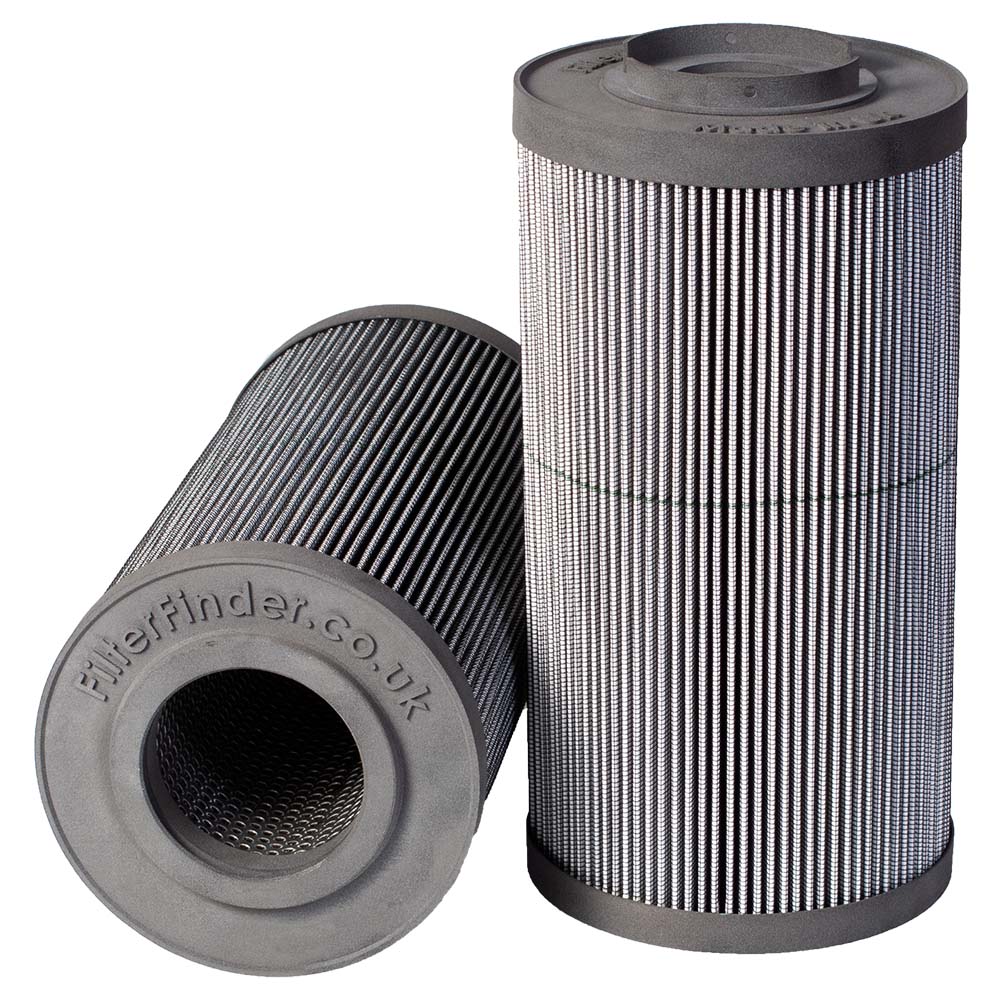

Alternative Return Filter

Specification
Micron Rating

A micron or micrometre is 1x10-6 of a metrealso written as 0.000001m. In filtration the micron rating is the minimum particle size the media will filter and is determined by the Beta Rating at that size.

22µ
Style Return Filter
Outer Diameter (mm) 130
Inner Diameter (mm) 64.5
Length (mm) 254
Media Type Glass Fibre
Beta Rating

Simply put the Beta rating, β, is the efficiency of the media within the filter element and is written as the number of particles that will pass through the element and into the system.

β1000
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range (C°) -30 - +100
