Donaldson P171653 Replaces the FilterFinder FF200574B

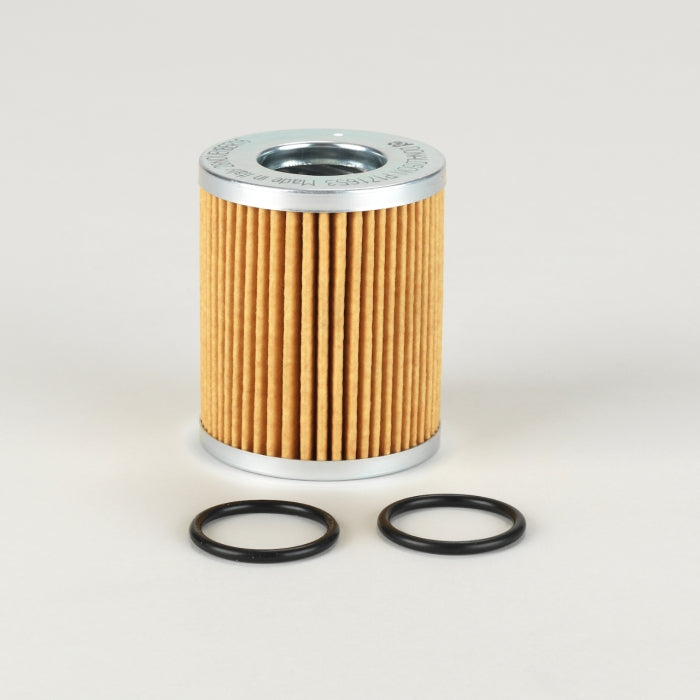

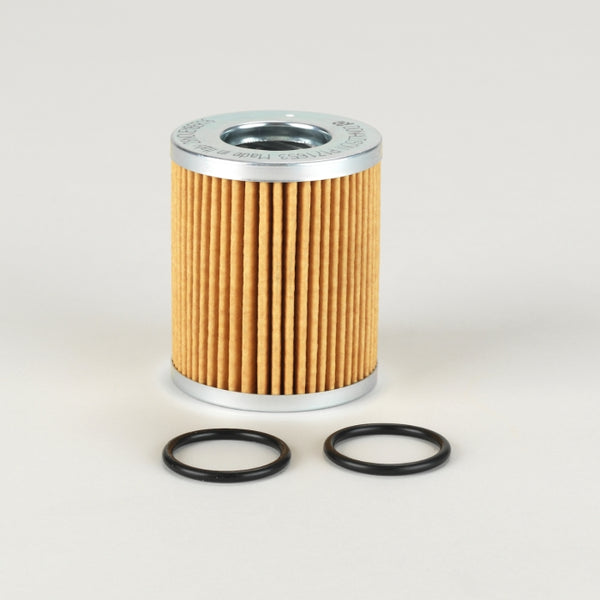

Donaldson P171653
Donaldson P171653
Watch video
▶
Representative product image Product image feedback

Donaldson P171653 Replaces the FilterFinder FF200574B

P171653
Donaldson
FilterFinder FF200574B
Brand: Donaldson
Description

Genuine Donaldson P171653 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Price Match
£14.20
Get delivery date - Enter postcode
0.11 kg
8421.29.80.90
Italy
1008
0.1 kg
8421.99.90
Italy
1008
0.14 kg
8421.99.90
France
1008
Shipping Terms

Description

Genuine Donaldson P171653 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleReturn Filter
Efficiency 110µ @ β2
Outer Diameter 70.0 mm
Inner Diameter 35.0 mm
Length 85.0 mm
MediaCellulose
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
FilterFinder Brand Logo

Same Fit-Form & Function

As the Genuine FilterFinder FF200574B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 70.0 mm
Inner Diameter 35.0 mm
Length 85.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
