Summary

FilterFinder No: FF200581B

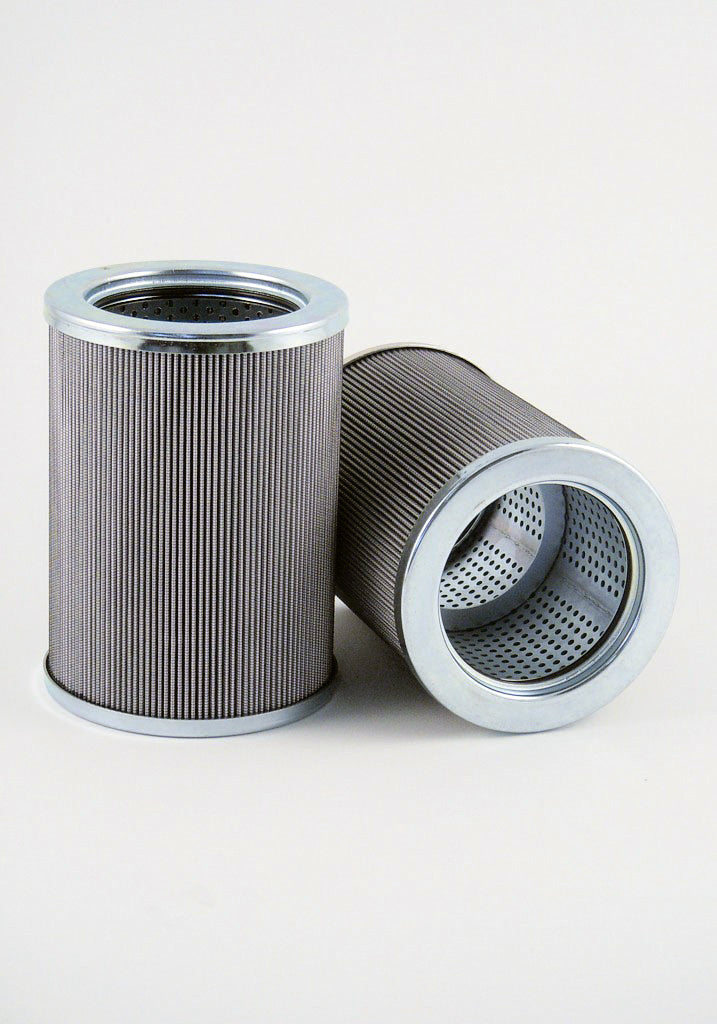

Alternative Return Filter

Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter (mm) 152
Inner Diameter (mm) 105.5
Length (mm) 427
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Viton
Temperature Range -25 - +120°C

FilterFinder No: FF200581B

Alternative Return Filter

FilterFinder FF200581B
£158.28 £189.94 inc VAT

Backorder dispatched in 6 - 8 weeks
