Summary

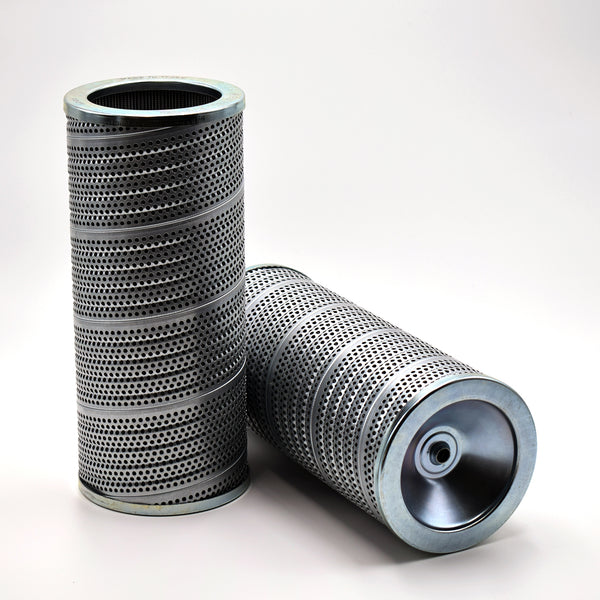

FilterFinder No: FF201403B

Alternative Return Filter

Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ
Efficiency 2
Style Return Filter
Outer Diameter (mm) 126
Inner Diameter (mm) 92
Length (mm) 250
Media Type Wire Mesh
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C

FilterFinder No: FF201403B

Alternative Return Filter

FilterFinder FF201403B
£233.57 £280.28 inc VAT

Backorder dispatched in 6 - 8 weeks
