Filter Finder No: FF201797B

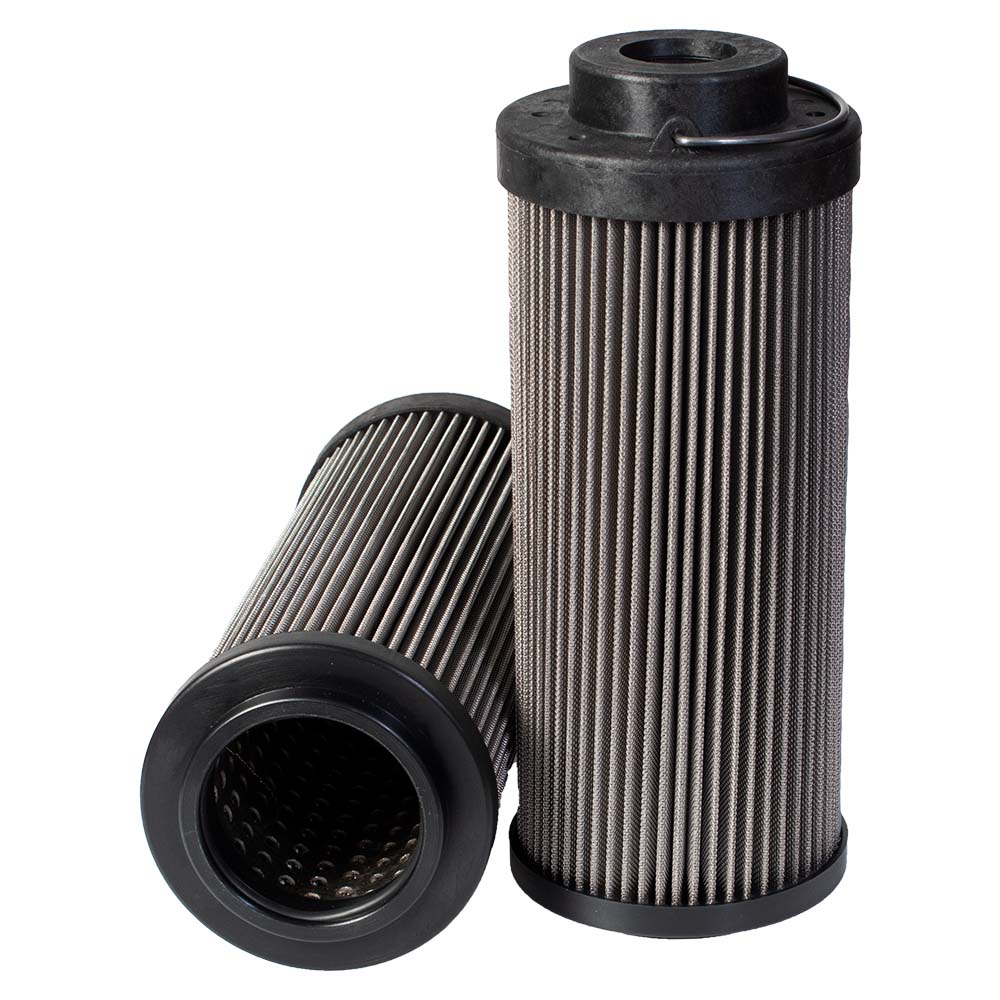

Alternative Return Filter

Specification
Micron Rating

A micron or micrometre is 1x10-6 of a metrealso written as 0.000001m. In filtration the micron rating is the minimum particle size the media will filter and is determined by the Beta Rating at that size.

50µ
Style Return Filter
Outer Diameter (mm) 77
Inner Diameter (mm) 48.2
Length (mm) 194
Media Type Wire Mesh
Beta Rating

Simply put the Beta rating, β, is the efficiency of the media within the filter element and is written as the number of particles that will pass through the element and into the system.

Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

3.0 BAR
Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range (C°) -30 - +100
