Summary

FilterFinder No: FF201910B

Alternative Return Filter

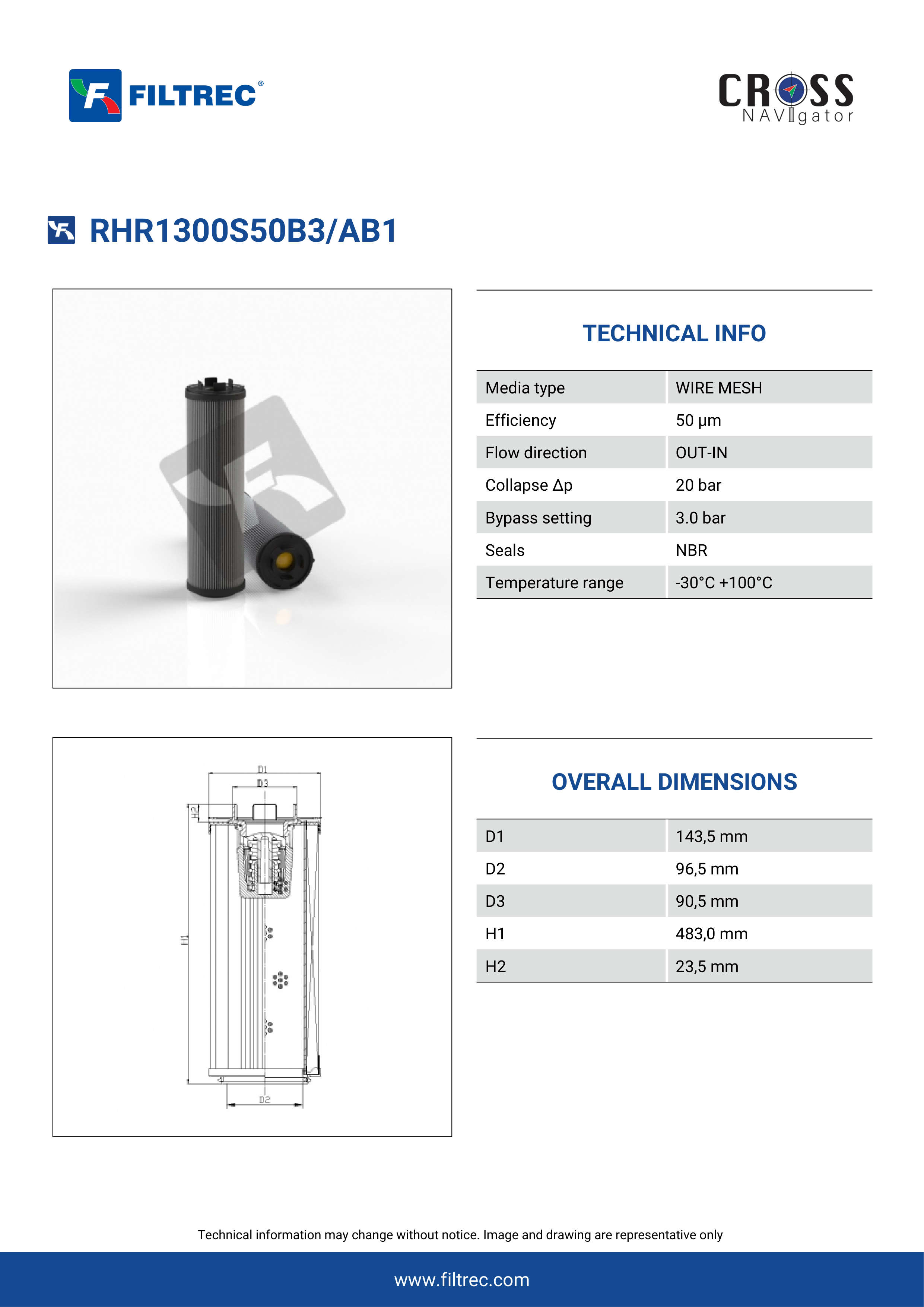

Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
50µ
Efficiency 2
Style Return Filter
Outer Diameter (mm) 143.5
Inner Diameter (mm) 96.5
Length (mm) 483
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

3.0 BAR
Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C

FilterFinder No: FF201910B

Alternative Return Filter

FilterFinder FF201910B
£442.56 £531.07 inc VAT

Backorder dispatched in 6 - 8 weeks
