Summary

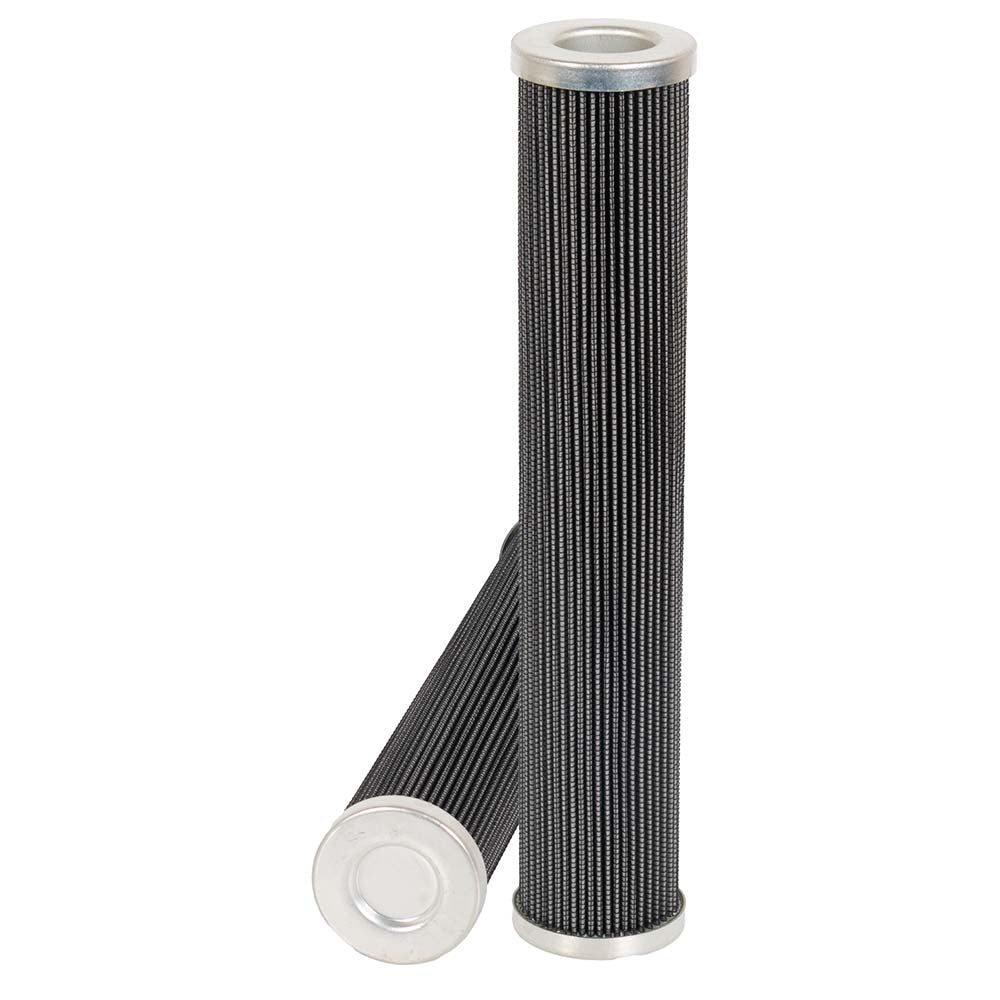

FilterFinder No: FF202087B

Alternative Pressure Filter

Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style Pressure Filter
Outer Diameter (mm) 47
Inner Diameter (mm) 25.5
Length (mm) 246
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Viton
Temperature Range -25 - +120°C

FilterFinder No: FF202087B

Alternative Pressure Filter

FilterFinder FF202087B
£74.60 £89.52 inc VAT

Backorder dispatched in 6 - 8 weeks
