FilterFinder No: FF202243B

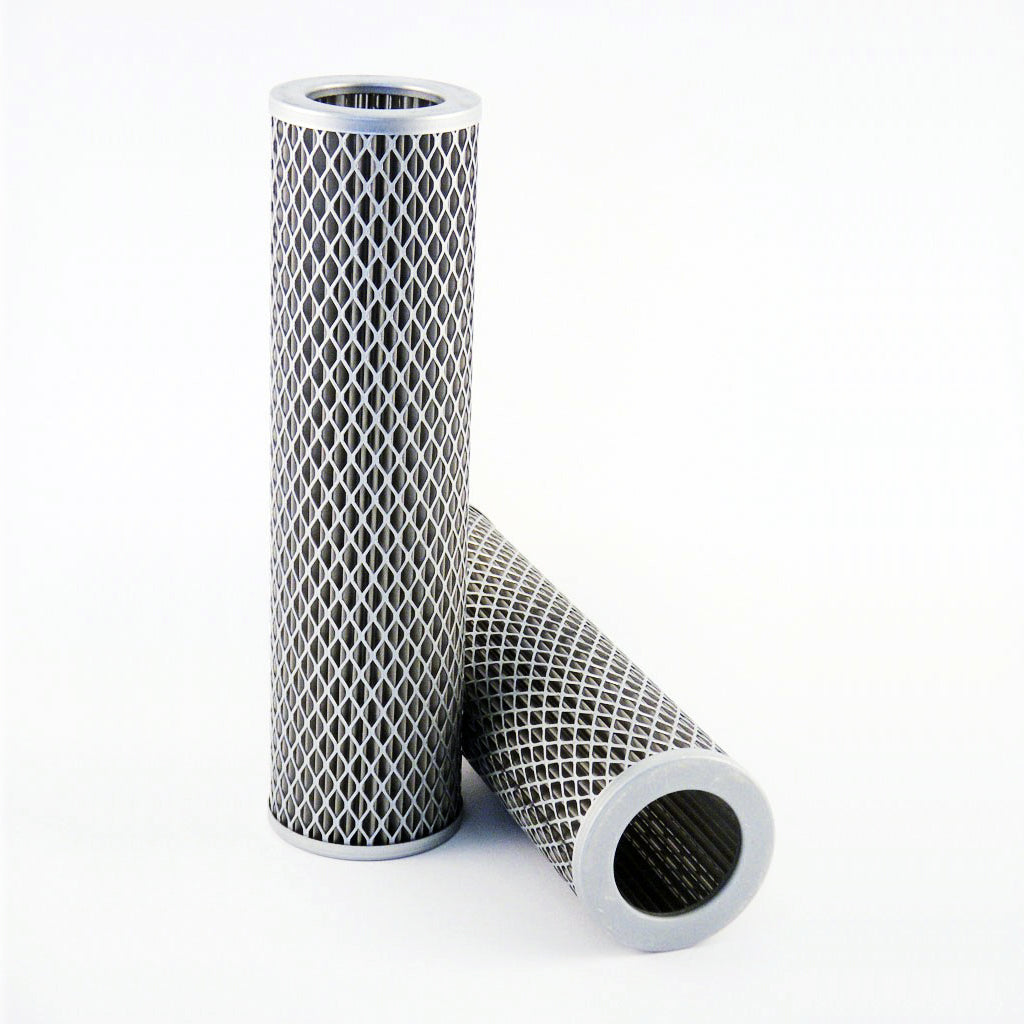

Alternative Suction Filter

Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Suction Filter
Outer Diameter (mm) 136
Inner Diameter (mm) 93
Length (mm) 247
Media Type Wire Mesh
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -25 - +120°C
