Specification

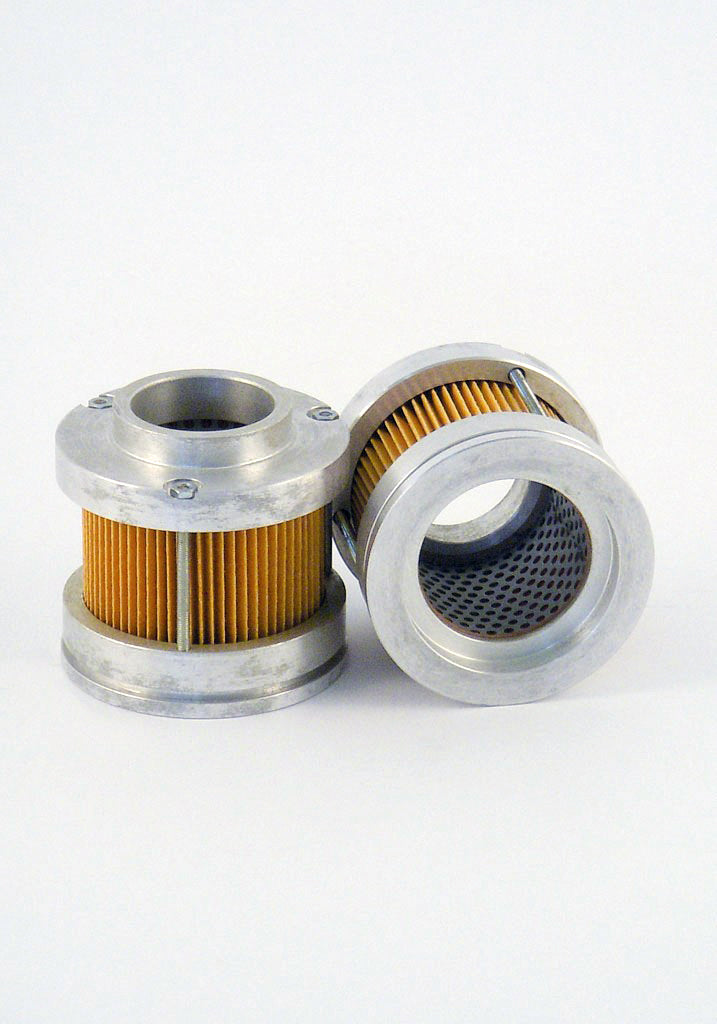

StyleSuction Filter
Efficiency 125µ
Outer Diameter 84 mm
Inner Diameter 84 mm
Length 82 mm
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 3.5 BAR
Seal MaterialGuarnital
Temperature Range -30 - +100°C

FilterFinder Approved Product

Our FilterFinder Approval guarantees that our filters will meet or exceed the quality and performance standards set by OEMs.

Original FilterFinder Product
Simple 45 Day Returns Details
1 Year Manufacturers Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Suction Filter
Outer Diameter 84 mm
Inner Diameter 84 mm
Length 82 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 3.5 BAR
Seal Guarnital
Temperature Range -30 - +100°C
