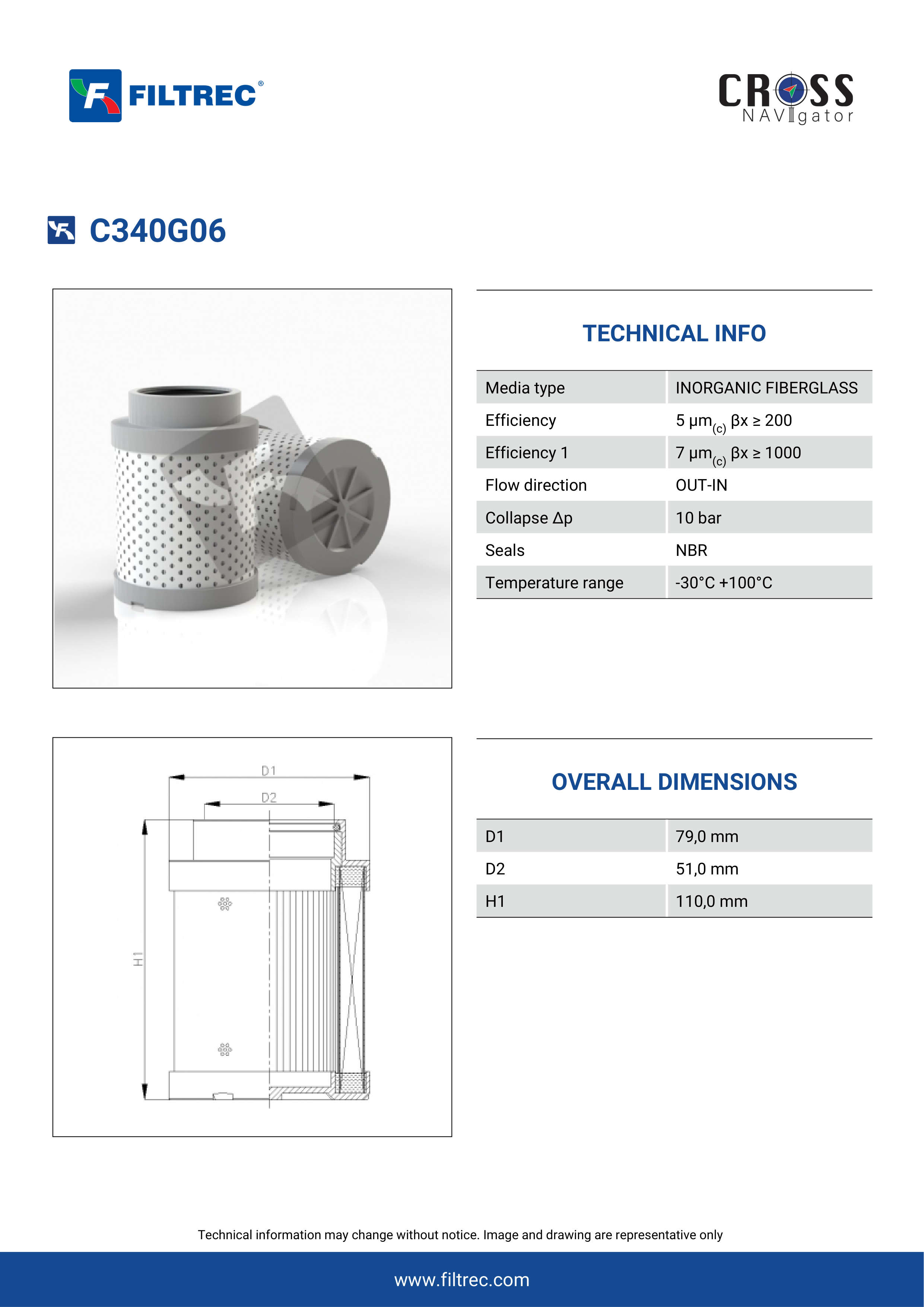

The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β. E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
7µ @ β1000
Outer Diameter (mm)
Inner Diameter (mm)
Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.
-30 - +100°C
FilterFinder No: FF202882B
Alternative Coreless Filter
Regular priceSale price£89.22£107.06 inc VAT
