Summary

FilterFinder No: FF203546B

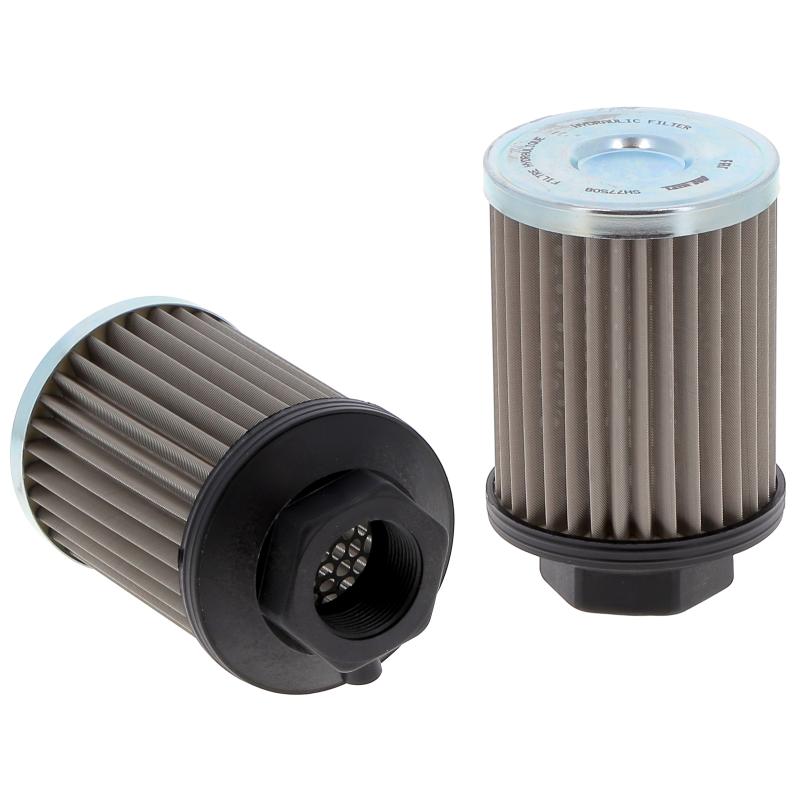

Alternative Suction Strainer

Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Strainer
Outer Diameter (mm) 102
Inner Diameter (mm)
Length (mm) 155
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 1 1/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C

FilterFinder No: FF203546B

Alternative Suction Strainer

FilterFinder FF203546B
£24.38 £29.26 inc VAT

Backorder dispatched in 6 - 8 weeks
