FilterFinder No: FF212639B

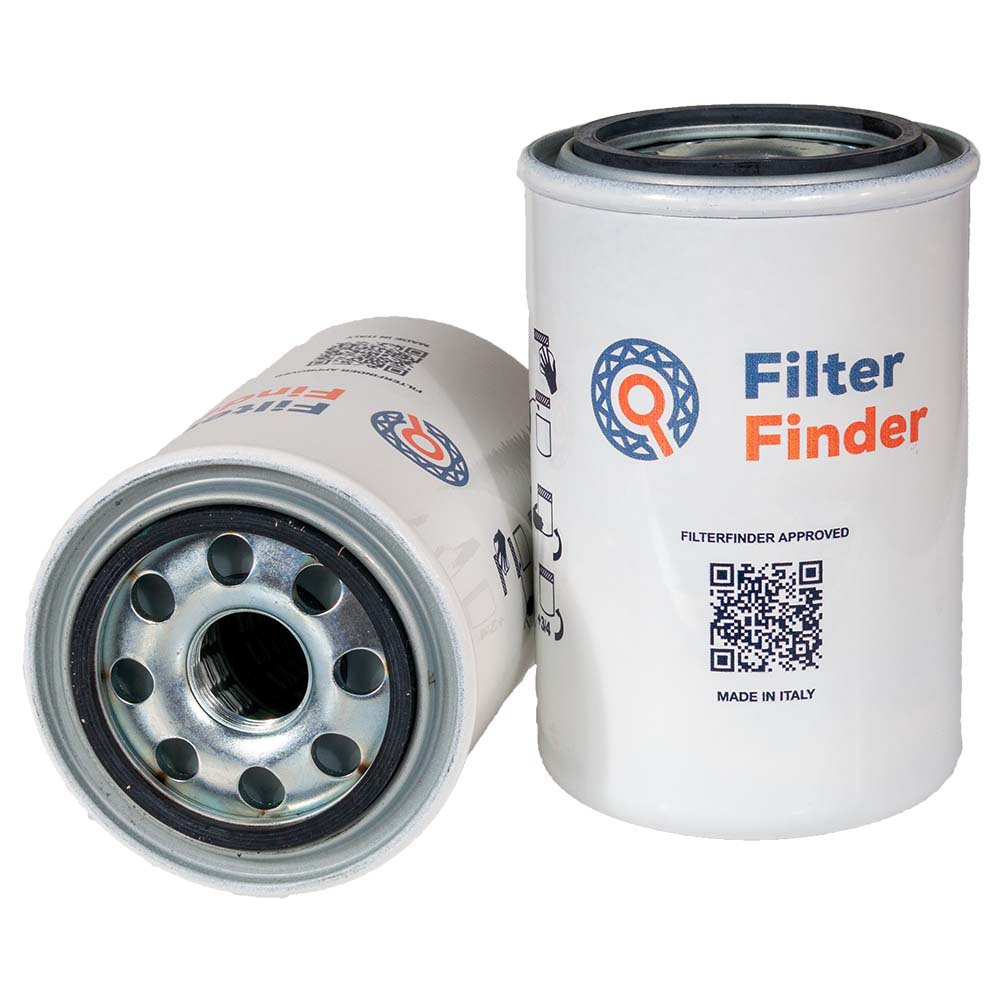

Alternative Spin-On Filter

Micron Rating

A micron or micrometre is 1x10-6 of a metrealso written as 0.000001m. In filtration the micron rating is the minimum particle size the media will filter and is determined by the Beta Rating at that size.

Style Spin-On Filter
Outer Diameter (mm) 96
Inner Diameter (mm)
Length (mm) 147
Media Type Cellulose
Beta Rating

Simply put the Beta rating, β, is the efficiency of the media within the filter element and is written as the number of particles that will pass through the element and into the system.

Flow Direction
Thread 3/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range (C°) -30 - +100
