Specification

StyleProcess Filter
Efficiency 110µ
Outer Diameter 64.0 mm
Inner Diameter 27.0 mm
Length 762.0 mm
Bypass Pressure 2.5 BAR
MediaNylon
Flow DirectionOUT-IN
Δ Collapse Pressure 4 BAR
Seal MaterialGasket
Temperature Range +1 - +150°C

Approved Product

Find out more
FilterFinder Brand Logo

FilterFinder Product

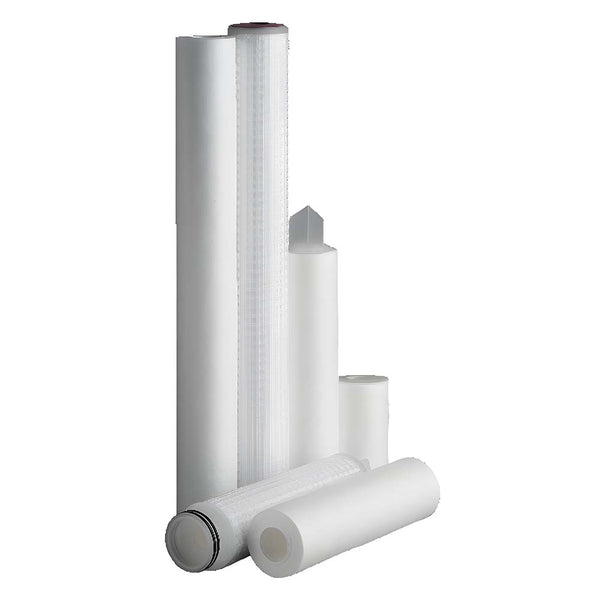

FilterFinder Approved FF423110D

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ
Efficiency 2
Style Process Filter
Outer Diameter 64.0 mm
Inner Diameter 27.0 mm
Length 762.0 mm
Media Type Nylon
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

2.5 BAR
Collapse Pressure 4 BAR
Seal Gasket
Temperature Range +1 - +150°C
