Stauff RE-070-G-10-B/4 Replaces the Stauff R240G10B4
Stauff RE-070-G-10-B/4 Replaces the Stauff R240G10B4
RE-070-G-10-B/4
Stauff

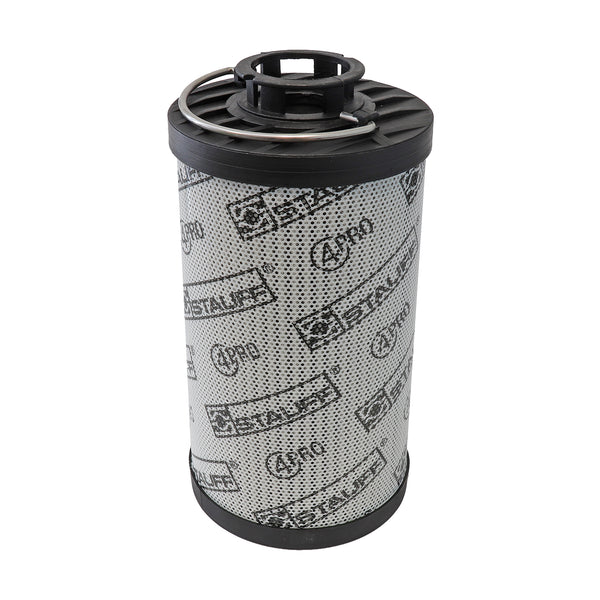

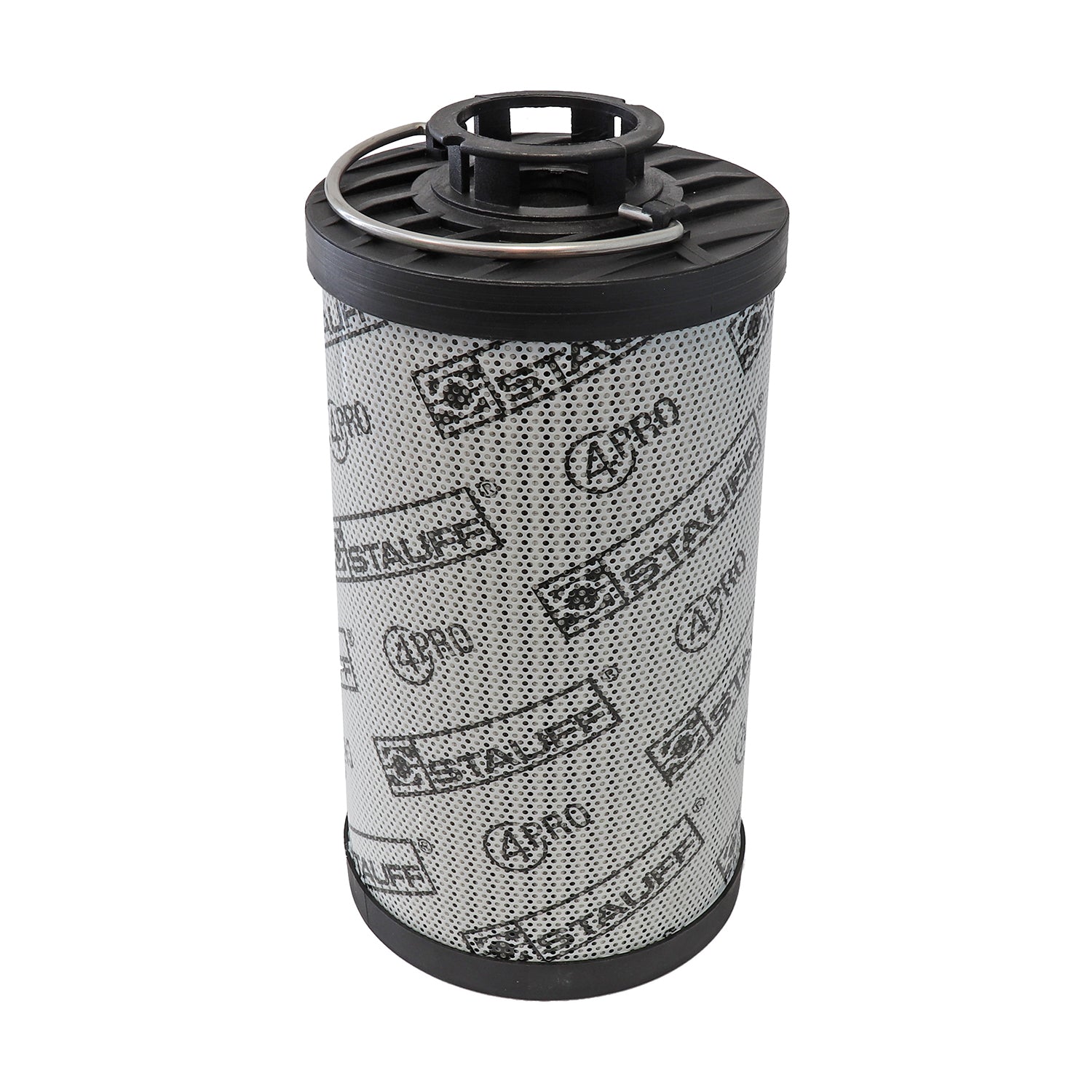

Stauff R240G10B4
Stauff
Stauff R240G10B4
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 74 Inner Diameter (mm): 34,2 Length (mm): 203 Sealing: NBR, β ratio >200
Brand:
Stauff
£94.80
Price£94.80/each
Incl. VAT£113.76
Shipped Friday, 28 March
Fastest delivery Monday, 31 March
Fastest delivery Monday, 31 March
Enter your postcode - Update location
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | £92.91 |
| 5 - 9 | £91.01 |
| 10 - + | £89.12 |
0.47 kg
8421.99.90
Germany
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 74 Inner Diameter (mm): 34,2 Length (mm): 203 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 73.5 mm |
| Inner Diameter | 34.2 mm |
| Length | 203.0 mm |
| Bypass Pressure | 3.0 BAR |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 20 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
