Stauff RTE-15-D-10-B Replaces the Stauff RTE25D10BS1

Stauff RTE25D10BS1
Stauff RTE25D10BS1

Stauff RTE-15-D-10-B Replaces the Stauff RTE25D10BS1

RTE-15-D-10-B
Stauff
Stauff RTE25D10BS1
Description

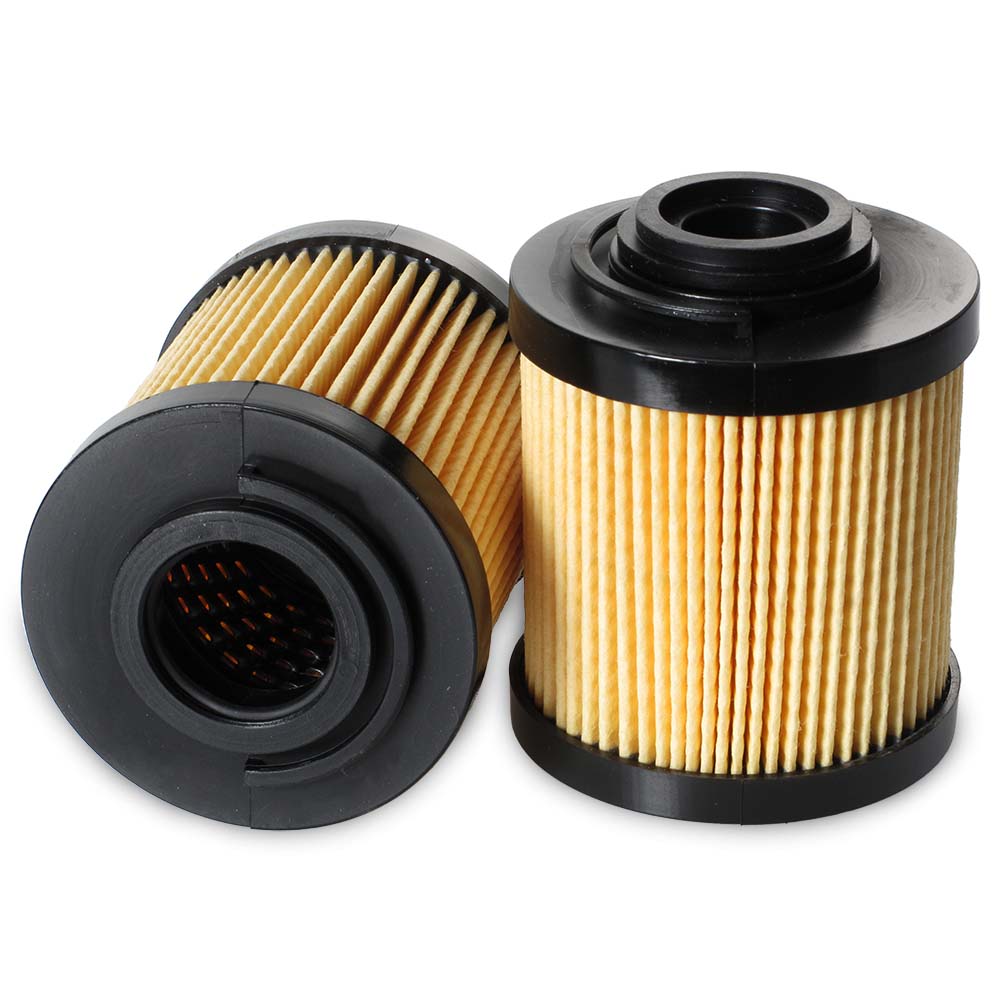

Return Line Filter Element Filter Paper 10µm

Brand: Stauff
Sort by:
Price Matched
Ships in 24 Days
£1.90
Price£1.90/each Incl. VAT£2.28
Shipped Friday, 2 May
 Fastest delivery Monday, 5 May
Enter your postcode - Update location
UNITSPER UNIT
2 - 4£1.87
5 - 9£1.83
10+£1.79
0.2 kg
8421.99.90
Germany
Shipping Terms

Description

Return Line Filter Element Filter Paper 10µm

Specification

StyleReturn Filter
Efficiency 110µ @ β2
Outer Diameter 70.0 mm
Inner Diameter 29.5 mm
Length 85.0 mm
Bypass Pressure 1.7 BAR
MediaCellulose
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Genuine Product

Find out more
Stauff Brand Logo

Stauff Product

Genuine Stauff RTE-15-D-10-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 70.0 mm
Inner Diameter 29.5 mm
Length 85.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
