Specification

StyleReturn Filter
Efficiency 125µ
Outer Diameter 53.0 mm
Inner Diameter 22.0 mm
Length 129.0 mm
Bypass Pressure 2.0 BAR
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 30 BAR
Seal MaterialViton
Temperature Range -25 - +120°C

Approved Product

Find out more
Filtrec Brand Logo

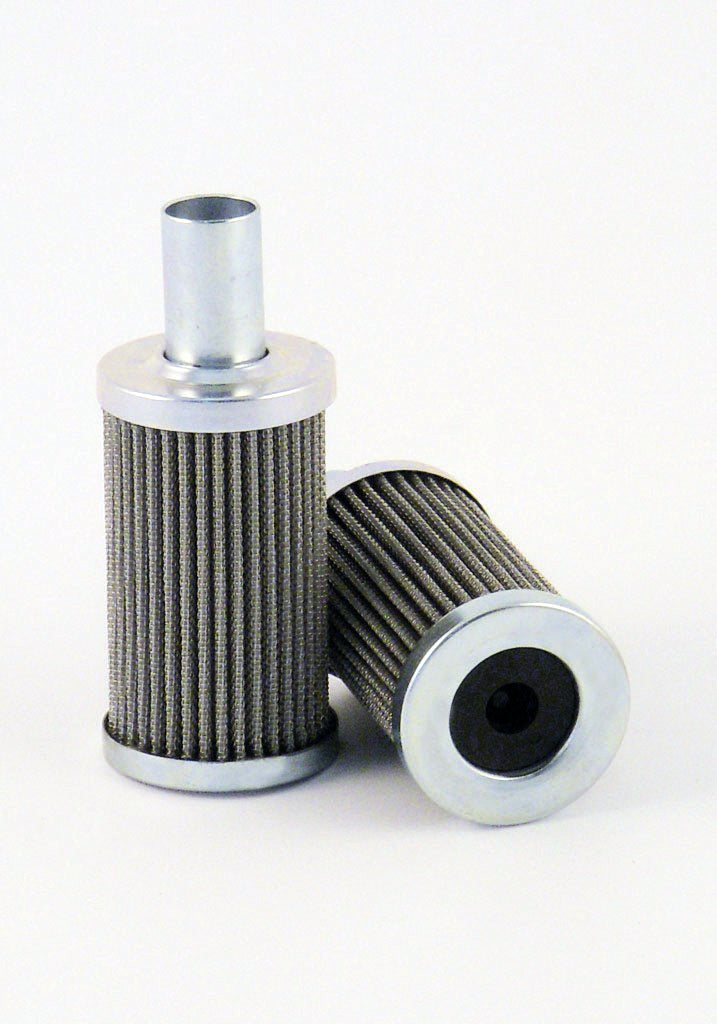

Same Fit-Form & Function

As the Genuine Filtrec RVR65B25B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Return Filter
Outer Diameter 53.0 mm
Inner Diameter 22.0 mm
Length 129.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

2.0 BAR
Collapse Pressure 30 BAR
Seal Viton
Temperature Range -25 - +120°C
